DP Serien

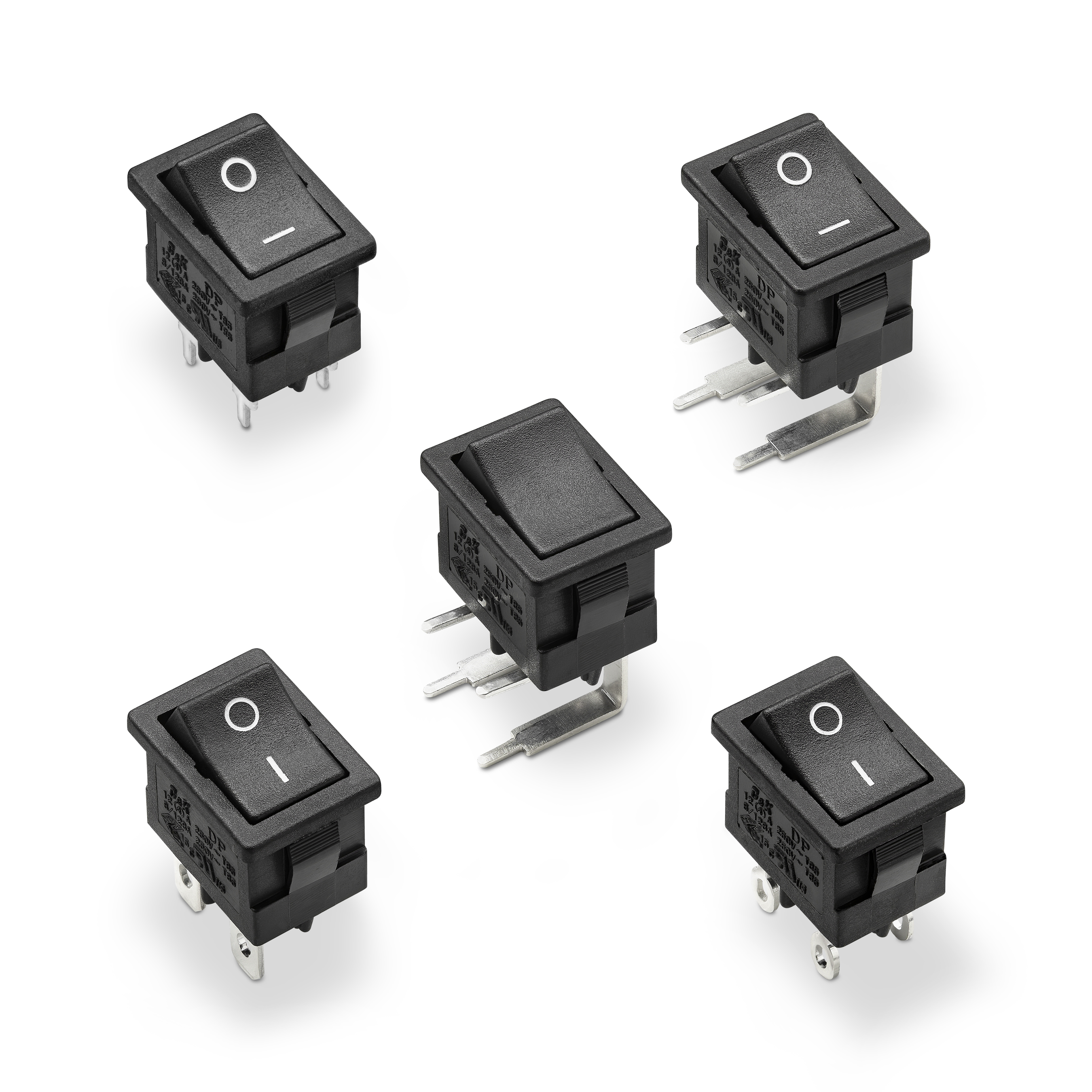

Die Abbildung zeigt die Produktserie und stellt möglicherweise nicht die tatsächliche Teilenummer dar


The DP series from C&K consists of compact snap-in power rocker switches, frequently utilized by designers in applications such as power supplies, testing and measuring devices, medical equipment, and consumer electronics. SPST and DPST options available along with various terminal configurations to ensure flexible installation.
Eigenschaften und Vorteile
- Long life – 20k cycles
- High inrush current up to 128A
- Contact gap, Creepage distances and clearance 3.0mm min
- Flame-retardant UL94-V0
- UL /ENEC certificated
Typische Anwendungsbereiche
- Medical Equipment
- Test and measuring machines
- Power Supplies
- Consumer electronics
Technische Daten
-
Electrical Life:
20,000 continuous operation without load
-
Insulation resistance:
100MΩ Min.
-
Contact Resistance:
100 mΩ Max.
-
Operating Temperature:
0 °C - 85 °C
-
Activation forces:
Min 2N / Nominal 7N / Max 12N
= Am häufigsten verwendet
- Current Rating
- Circuit
- Mounting Type
- Sealing
- Illumination
- Switch Function
- Electrical Life Cycles
- Voltage Rating - AC
- Voltage Rating - DC
- Color - Actuator/Cap
- Actuator Marking
- Illumination Type, Color
- Illumination Voltage (Nominal)
- Termination Style
- Additional Features
- Panel Cutout Dimensions
- Actuator Type
- Packaging
Part Number |
---|
Current Rating | Circuit | Mounting Type | Sealing | Illumination | Switch Function | Electrical Life Cycles | Voltage Rating - AC | Voltage Rating - DC | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Additional Features | Panel Cutout Dimensions | Actuator Type | Packaging |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
12A @ 250V AC | DPST | Snap-in | N/A | No | Off-None-On | 20.000 | Yes | Quick connect | 15mm x 21mm | Concave (Curved) | Tray | ||||||
12A @ 250V AC | DPST | Snap-in | N/A | No | Off-None-On | 20.000 | Yes | Thru-hole | 15mm x 21mm | Concave (Curved) | Tray | ||||||
12A @ 250V AC | DPST | Snap-in | N/A | No | Off-None-On | 20.000 | Yes | Quick connect | 15mm x 21mm | Concave (Curved) | Tray | ||||||
12A @ 250V AC | SPST | Snap-in | N/A | No | Off-None-On | 20.000 | Yes | Quick connect | 15mm x 21mm | Concave (Curved) | Tray | ||||||
12A @ 250V AC | DPST | Snap-in | N/A | No | Off-None-On | 20.000 | Yes | Left Angle Thru-hole | 15mm x 21mm | Concave (Curved) | Tray | ||||||
12A @ 250V AC | DPST | Snap-in | N/A | No | Off-None-On | 20.000 | None | Right Angle Thru-hole | 15mm x 21mm | Concave (Curved) | Tray | ||||||
12A @ 250V AC | DPST | Snap-in | N/A | No | Off-None-On | 20.000 | Yes | Solder lug | 15mm x 21mm | Concave (Curved) | Tray |
