D6 Serien
SPST kurzzeitiger Schlüsselschalter

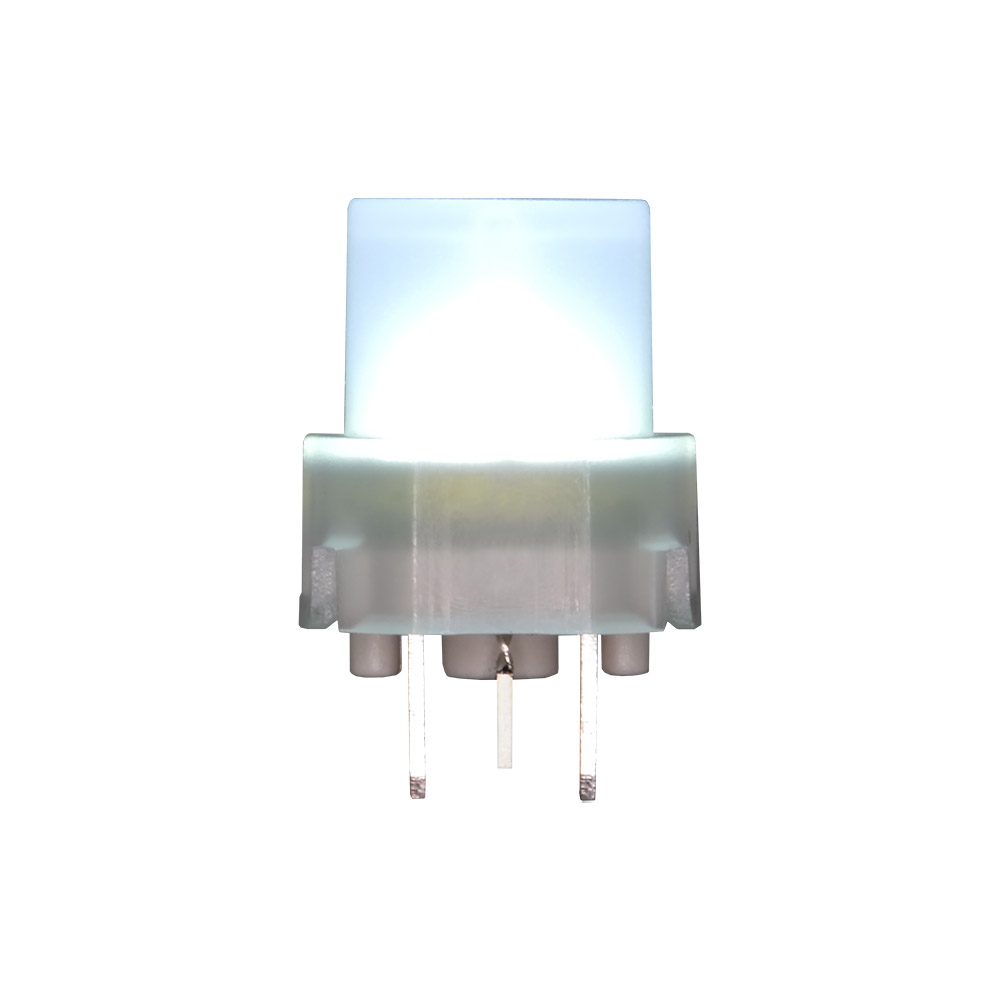

Die Abbildung zeigt die Produktserie und stellt möglicherweise nicht die tatsächliche Teilenummer dar
Toolbox
Downloads
Der D6 SPST-Schlüsselschalter von C&K wird aufgrund seiner Fähigkeit, hohen Temperaturen standzuhalten, häufig in Haushaltsgeräten, elektronischen Spielen, Videoanwendungen und industriellen Steuerungen verwendet. Der D6 ist so konstruiert, dass er eine einfache X- und Y-Codierung auf einer einseitigen Leiterplatte ermöglicht, RoHS-konform ist und in einer Vielzahl von Farben und Ausführungen bestellt werden kann, wodurch es ganz einfach ist, diesen Schalter an Ihr Produktdesign anzupassen.
Eigenschaften und Vorteile
- Easy X, Y coding on single side PCB
- Excellent tactile feel
- High temperature
Typische Anwendungsbereiche
- Consumer
- Industrial
- Keyboard
Technische Daten
-
Contact Rating:
100mA (10mA for illuminated version)
-
Contact Resistance:
< 100 milliohms
-
Dielectric Strength:
250 Vrms
-
Electrical Life:
Up to 250,000 cycles
-
Insulation Resistance:
> 100 megohms
-
Operating Temperature:
-20°C to 85°C (-20°C to 60°C for illuminated version)
-
Solderability:
Wave soldering, compatible with lead free soldering profile, Hand soldering, 350°C for 3 seconds
= Am häufigsten verwendet
| Part Number |
|---|
| Current Rating | Circuit | Mounting Type | Sealing | Illumination | Switch Function | Electrical Life Cycles | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Illumination Type, Color | Termination Style | Packaging |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10mA (DC) | SPST-NO | Thru-hole | Unsealed | Yes | Off-Mom On | 30.000 | 35V | Round, Button | Transparent | Green | Thru-hole | Tray | |
| 100mA (DC) | SPST-NO | Thru-hole | Unsealed | No/None | Off-Mom On | 250.000 | 32V | Square, Button | Black | Thru-hole | Bulk | ||
| 100mA (DC) | SPST-NO | Thru-hole | Unsealed | No/None | Off-Mom On | 250.000 | 32V | Plunger for Cap | Black | Thru-hole | Bulk | ||
| 100mA (DC) | SPST-NO | Thru-hole | Unsealed | No/None | Off-Mom On | 250.000 | 32V | Round, Button | Gray | Thru-hole | Bulk | ||
| 100mA (DC) | SPST-NO | Thru-hole | Unsealed | No/None | Off-Mom On | 250.000 | 32V | Round, Button | Black | Thru-hole | Bulk | ||
| 100mA (DC) | SPST-NO | Thru-hole | Unsealed | No/None | Off-Mom On | 250.000 | 32V | Round, Button | Red | Thru-hole | Bulk | ||
| 100mA (DC) | SPST-NO | Thru-hole | Unsealed | No/None | Off-Mom On | 250.000 | 32V | Round, Button | Red | Thru-hole | Bulk | ||
| 100mA (DC) | SPST-NO | Thru-hole | Unsealed | No/None | Off-Mom On | 250.000 | 32V | Round, Button | Green | Thru-hole | Bulk | ||
| 100mA (DC) | SPST-NO | Thru-hole | Unsealed | No/None | Off-Mom On | 250.000 | 32V | Round, Button | Green | Thru-hole | Bulk | ||
| 100mA (DC) | SPST-NO | Thru-hole | Unsealed | No/None | Off-Mom On | 250.000 | 32V | Round, Button | Blue | Thru-hole | Bulk | ||
| 100mA (DC) | SPST-NO | Thru-hole | Unsealed | No/None | Off-Mom On | 250.000 | 32V | Round, Button | Blue | Thru-hole | Bulk | ||
| 100mA (DC) | SPST-NO | Thru-hole | Unsealed | No/None | Off-Mom On | 250.000 | 32V | Round, Button | Black | Thru-hole | Bulk | ||
| 100mA (DC) | SPST-NO | Thru-hole | Unsealed | No/None | Off-Mom On | 250.000 | 32V | Round, Button | Gray | Thru-hole | Bulk | ||
| 100mA (DC) | SPST-NO | Thru-hole | Unsealed | No/None | Off-Mom On | 250.000 | 32V | Round, Button | Yellow | Thru-hole | Bulk | ||
| 100mA (DC) | SPST-NO | Thru-hole | Unsealed | No/None | Off-Mom On | 250.000 | 32V | Round, Button | Yellow | Thru-hole | Bulk | ||
| 100mA (DC) | SPST-NO | Thru-hole | Unsealed | No/None | Off-Mom On | 250.000 | 32V | Plunger for Cap | Black | Thru-hole | Bulk | ||
| 100mA (DC) | SPST-NO | Thru-hole | Unsealed | No/None | Off-Mom On | 250.000 | 32V | Round, Button | White | Thru-hole | Bulk | ||
| 100mA (DC) | SPST-NO | Thru-hole | Unsealed | No/None | Off-Mom On | 250.000 | 32V | Round, Button | White | Thru-hole | Bulk | ||
| 100mA (DC) | SPST-NO | Thru-hole | Unsealed | No/None | Off-Mom On | 250.000 | 32V | Round, Button, Flush | White | Thru-hole | Bulk | ||
| 100mA (DC) | SPST-NO | Thru-hole | Unsealed | No/None | Off-Mom On | 250.000 | 32V | Round, Button, Flush | White | Thru-hole | Bulk | ||
| 100mA (DC) | SPST-NO | Thru-hole | Unsealed | No/None | Off-Mom On | 250.000 | 32V | Round, Button, Flush | Black | Thru-hole | Bulk | ||
| 100mA (DC) | SPST-NO | Thru-hole | Unsealed | No/None | Off-Mom On | 250.000 | 32V | Round, Button, Flush | Black | Thru-hole | Bulk | ||
| 100mA (DC) | SPST-NO | Thru-hole | Unsealed | No/None | Off-Mom On | 250.000 | 32V | Square, Button | White | Thru-hole | Bulk | ||
| 100mA (DC) | SPST-NO | Thru-hole | Unsealed | No/None | Off-Mom On | 250.000 | 32V | Square, Button | White | Thru-hole | Bulk | ||
| 100mA (DC) | SPST-NO | Thru-hole | Unsealed | No/None | Off-Mom On | 250.000 | 32V | Square, Button | Gray | Thru-hole | Bulk |
